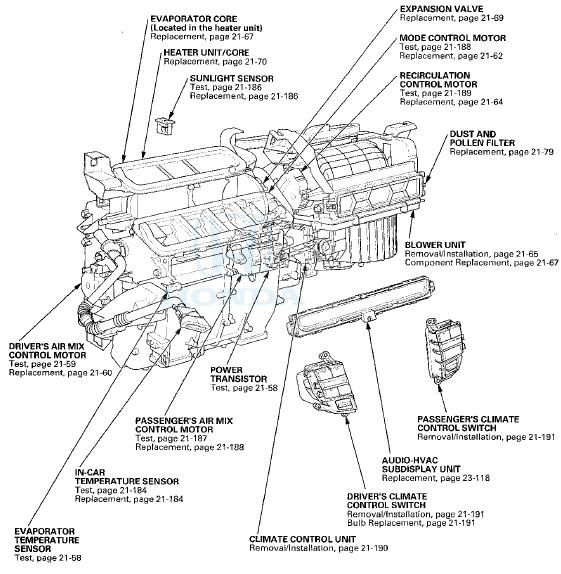

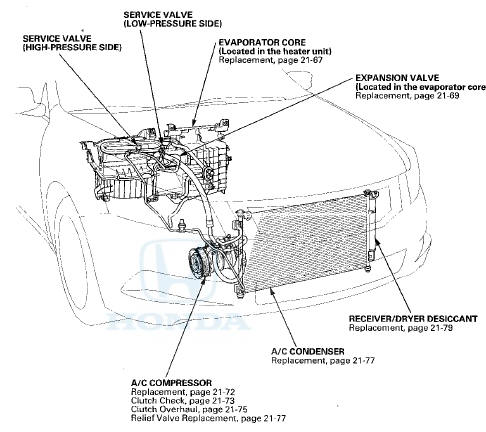

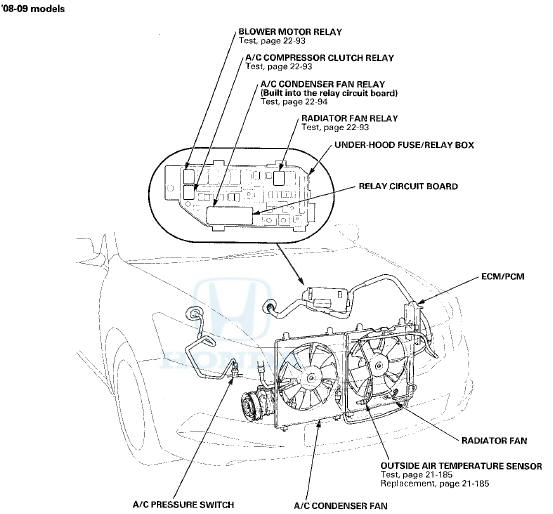

Honda Accord: Component Location Index
Eighth generation (2008–2012) / Honda Accord MK8 2008-2012 Service Manual / Heating, Ventilation, and Air Conditioning / Climate Control / Component Location Index

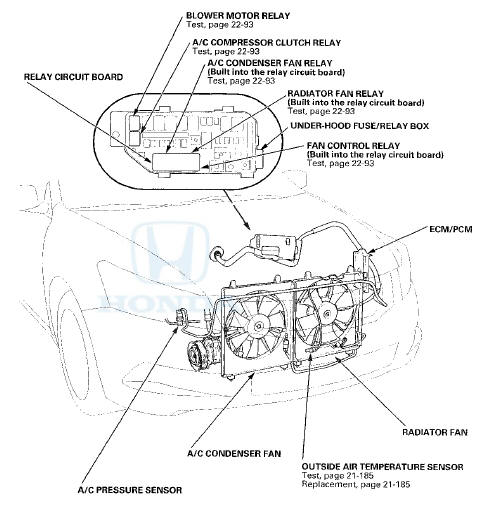

'10 model
With navigation
Without navigation
