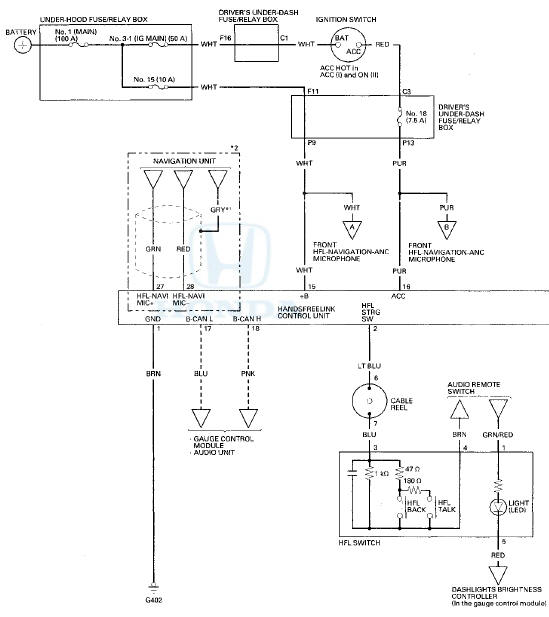

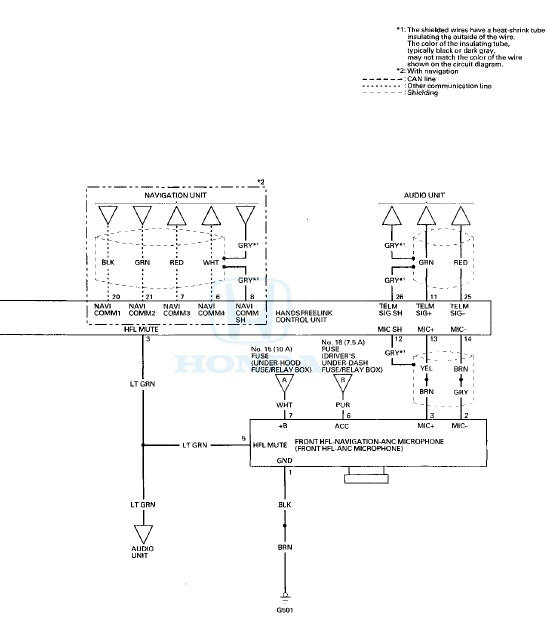

Honda Accord: Circuit Diagram - HandsFreeLink System - Audio, Navigation, and Telematics - Honda Accord MK8 2008-2012 Service ManualHonda Accord: Circuit Diagram
