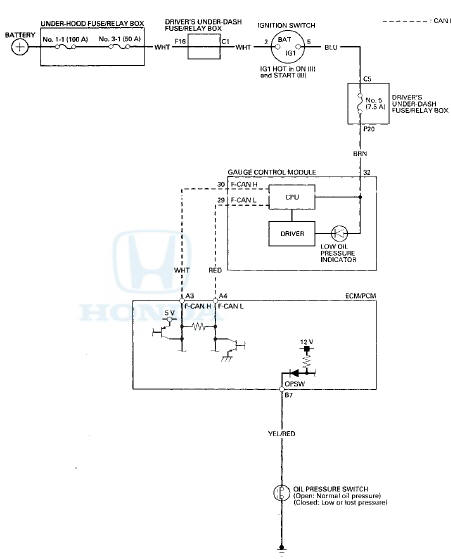

Honda Accord: Low Oil Pressure Indicator Circuit Diagram
Eighth generation (2008–2012) / Honda Accord MK8 2008-2012 Service Manual / Engine Mechanical / Engine Lubrication / Low Oil Pressure Indicator Circuit Diagram

Low Oil Pressure Indicator Circuit Troubleshooting (Open)
1 Connect the Honda Diagnostic System (HDS) to the
data Jink connector (DIG) (see step 2 on page 11-3).
2. Turn the ignition switch to ON (ll).
3. Make sure the HDS communicates with the vehicl ...
