Honda Accord: Connector Index - Connectors and Harnesses - Body Electrical - Honda Accord MK8 2008-2012 Service ManualHonda Accord: Connector Index

Identification numbers have been assigned to in-line connectors, junction connectors, and terminals. The number is preceded by the letter "C" for connectors, " G " for ground terminals, or "T" for non-ground terminals.

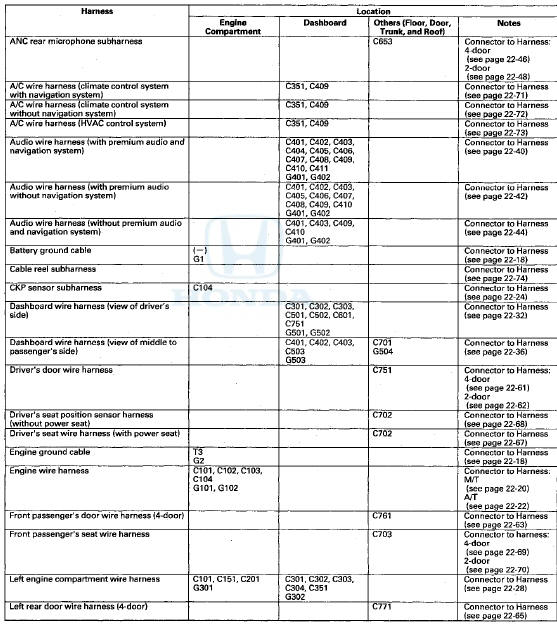

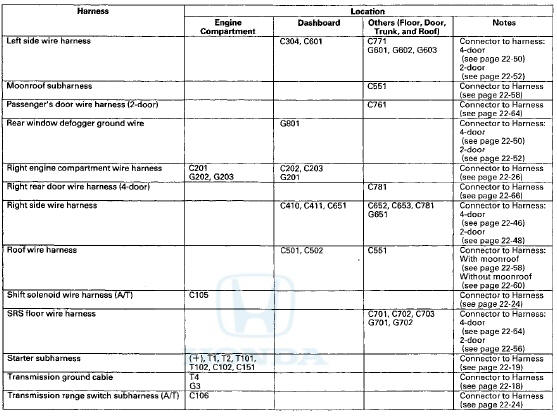

Connector to Harness Index


    Connectors and Harnesses
    ...

    Connector to Harness Index
    Starter Subharness Engine Wire Harness (M/T) Engine Wire Harness ( A / T ) *1: PZEV *2: Except PZEV CKP Sensor Subharness Shift Solenoid Wire Harness (A/T) Transmission Rang ...
