Immobilizer System

...

System Description

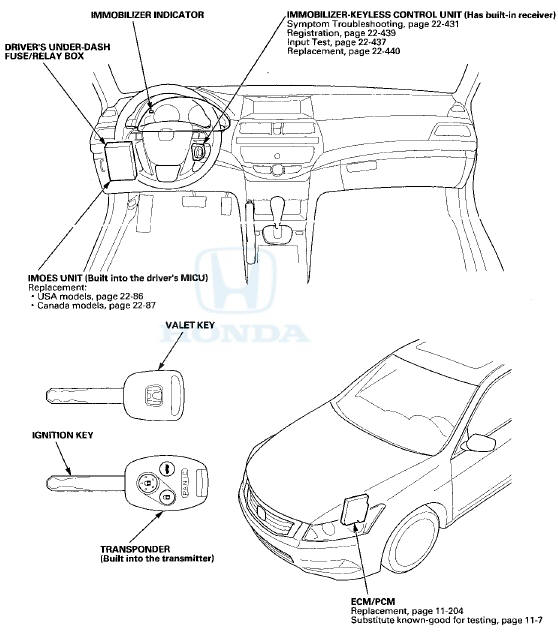

The vehicle is equipped with a Type Vll (GEN 5) immobilizer system that will disable the vehicle unless a programmed ignition key is used. This system consists of a transponder combined with a k ...

See also:

Security Hood Switch Test
1. Open the hood. 2. Disconnect the 2P connector from the security hood switch. 3. Check for continuity between the terminals. • There should be continuity between terminals No. 1 and ...

Fuse/Relay Boxes
Connector to Fuse/Relay Box Index Under-hood Fuse/Relay Box *: '08-09 models Driver's Under-dash Fuse/Relay B O M Passenger's Under-dash Fuse/Relay Box *1: LX, LX PZEV, LX-P, LX-P PZE ...

Immobilizer-Keyless Control Unit Replacement
1 . Remove the driver's dashboard lower cover (see page 20-166). 2. Remove the steering column covers (see page 20-181). 3. Disconnect the 7P connector (A) from the immobilizer-keyless contro ...
