Honda Accord: Circuit Diagram - Rear Window Defogger - Body Electrical - Honda Accord MK8 2008-2012 Service ManualHonda Accord: Circuit Diagram

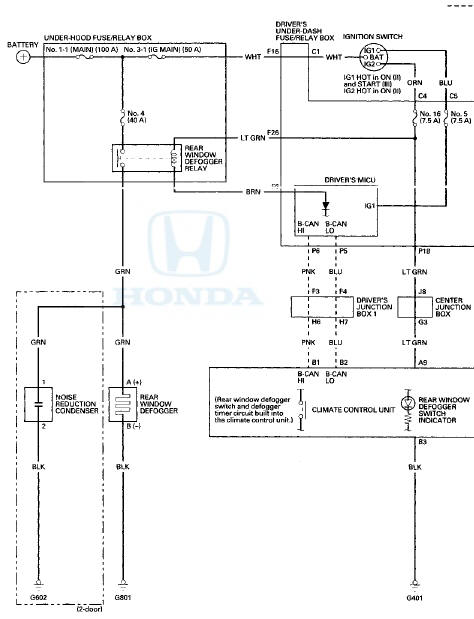

'10 model w i t h navigation system

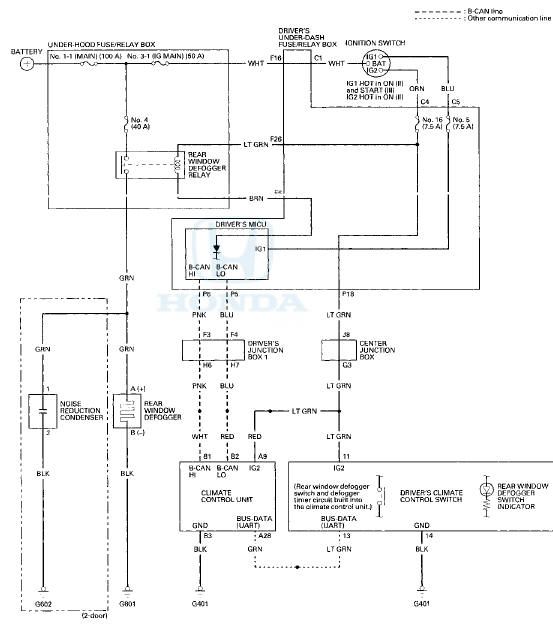

'08-09 models with navigation system


'08-09 models with navigation system

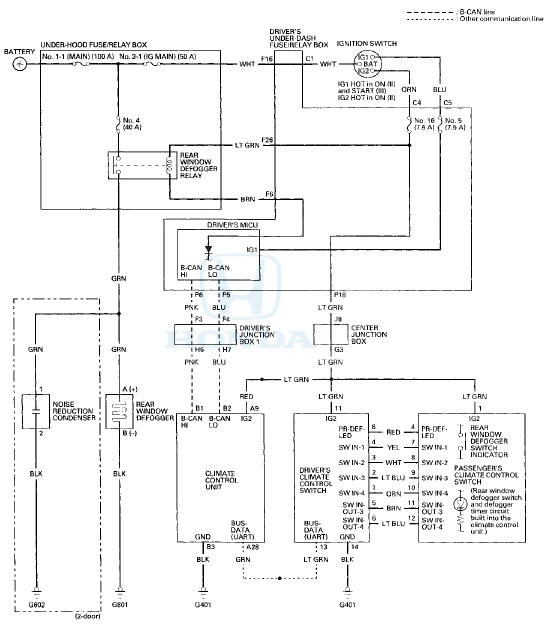

Without navigation system with climate control system


Without navigation system with climate control system

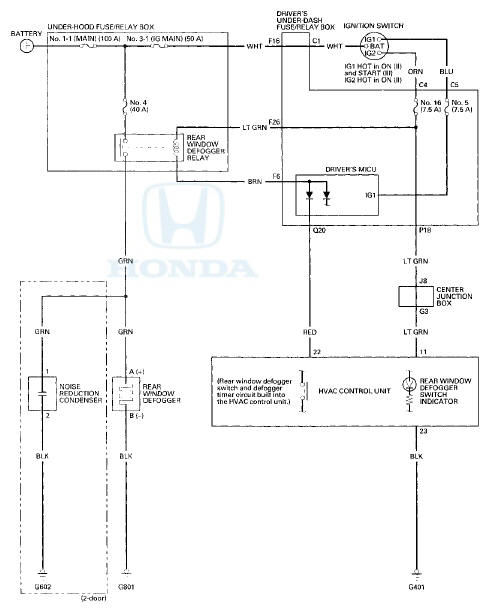

With HVAC control system


With HVAC control system

Function Test


    Component Location Index
    With navigation system   ...

    Function Test
    NOTE; • With climate control: Before testing, troubleshoot the B-CAN System Diagnosis Test Mode A (see page 22-134). • Before testing, check the No. 4 (40 A) fuse in the under-hood fu ...
