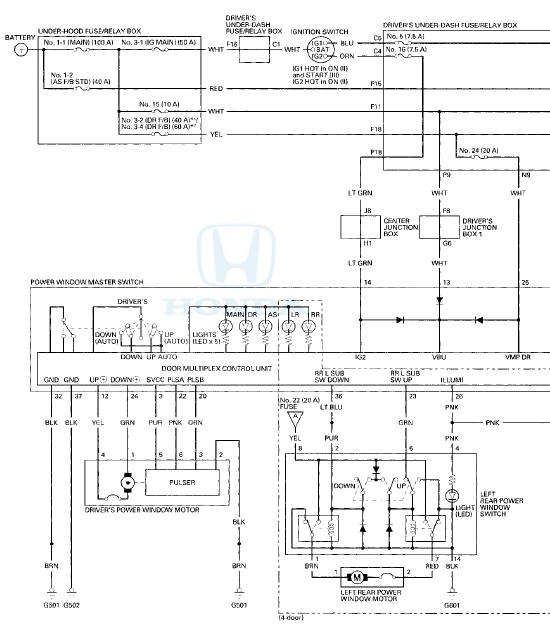

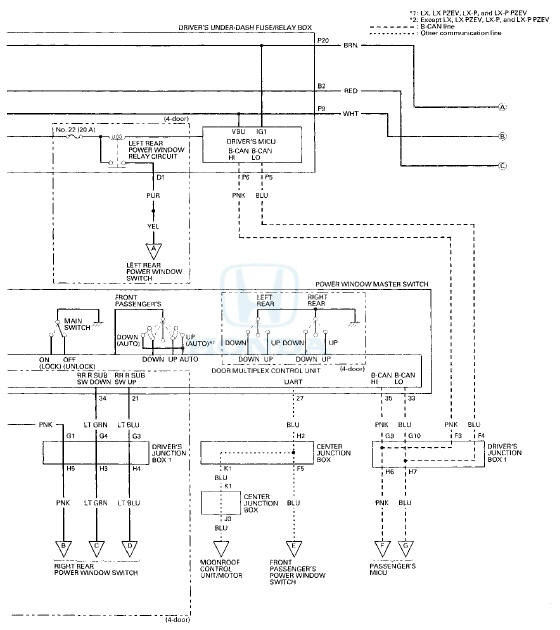

Honda Accord: Circuit Diagram
Eighth generation (2008–2012) / Honda Accord MK8 2008-2012 Service Manual / Body Electrical / Power Windows / Circuit Diagram



Resetting the Power Window Control
Unit
Resetting t h e power w i n d o w s are r e q u i r e d w h e n any of
t h e f o l l o w i n g have occurred:
• Power window regulator replacement,
r e m o v a l / i n s t a l l a t i o n , or ...
DTC Troubleshooting
DTC B112S; Driver's Power Window Motor A
Pulse Malfunction
DTC B1126: Driver's Power Window Motor B
Pulse Malfunction
NOTE: If you are troubleshooting multiple DTCs, be sure
to follow the instruc ...
