Honda Accord: Changing a Flat Tire - Taking Care of the Unexpected - Honda Accord 2008-2012 Owner's ManualHonda Accord: Changing a Flat Tire

If you have a flat tire while driving, pull over safely. Drive slowly along the shoulder until you get to an area far away from traffic lanes.

The vehicle can easily roll off

The vehicle can easily roll off the jack, seriously injuring anyone underneath.

Follow the directions for changing a tire exactly, and never get under the vehicle when it is supported only by the jack.

1. Park the vehicle on firm, level, and

1. Park the vehicle on firm, level, and non-slippery ground. Put the transmission in Park (automatic) or reverse (manual). Apply the parking brake.

2. Turn on the hazard warning lights, and turn the ignition switch to the LOCK (0) position. Have all passengers get out of the vehicle while you change the tire.

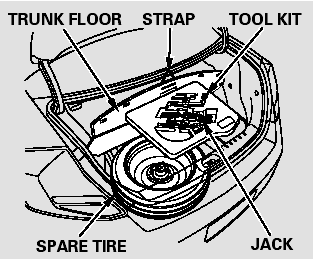

3. The tools are in the trunk. Open the trunk and raise the trunk floor by pulling up the strap.

4. Take the tool kit out of the trunk.

5. Unscrew the wing bolt and take the spare tire out of its well.

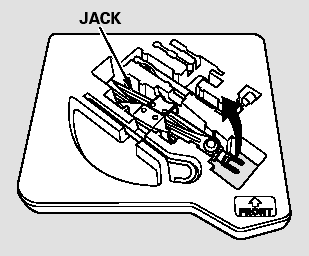

6. Take the jack out of the tool kit

6. Take the jack out of the tool kit case.

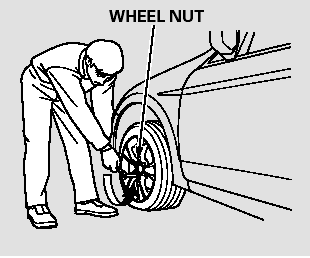

7.  Loosen each wheel nut 1/2 turn

7.  Loosen each wheel nut 1/2 turn with the wheel nut wrench.

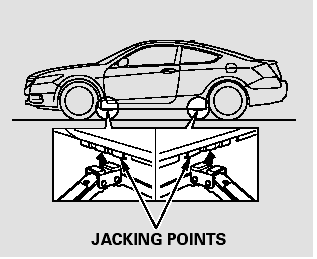

8. Place the jack under the jacking

8. Place the jack under the jacking point nearest the tire you need to change. Turn the end bracket clockwise until the top of the jack contacts the jacking point. Make sure the jacking point tab is resting in the jack notch.

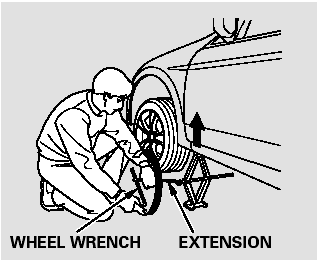

9.  Use the extension and the wheel

9.  Use the extension and the wheel nut wrench as shown to raise the vehicle until the flat tire is off the ground.

10. Remove the wheel nuts, then remove the flat tire. Handle the wheel nuts carefully; they may be hot from driving. Place the flat tire on the ground with the outside surface facing up.

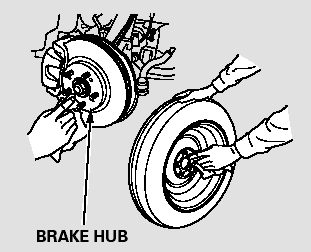

11. Before mounting the spare tire,

11. Before mounting the spare tire, wipe any dirt off the mounting surface of the wheel and hub with a clean cloth. Wipe the hub carefully; it may be hot from driving.

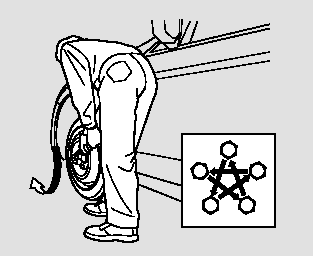

12. Put on the spare tire. Put the wheel nuts back on finger-tight, then tighten them in a crisscross pattern with the wheel nut wrench until the wheel is firmly against the hub. Do not try to tighten the wheel nuts fully.

13. Lower the vehicle to the ground, and remove the jack.

14. Tighten the wheel nuts securely in

14. Tighten the wheel nuts securely in the same crisscross pattern. Have the wheel nut torque checked at the nearest automotive service facility.

Tighten the wheel nuts to:

80 lbf·ft (108 N·m , 11 kgf·m)

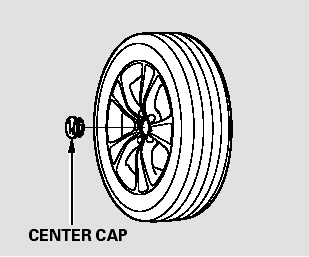

15. Remove the center cap before

15. Remove the center cap before storing the flat tire in the trunk well.

16.  Place the flat tire face down in the

16.  Place the flat tire face down in the spare tire well.

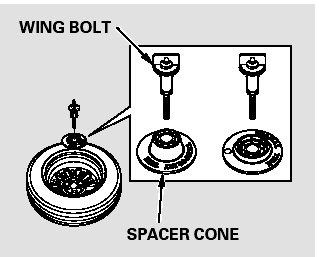

17. Remove the spacer cone from the

17. Remove the spacer cone from the wing bolt, turn it over, and put it back on the bolt.

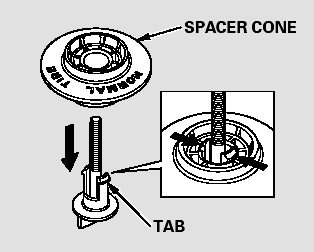

To remove the spacer cone, squeeze the tabs on the wing bolt to disengage it from the center of the spacer cone, then pull the bolt downward.

To install the wing bolt to the spacer cone, reverse this procedure.

18. Secure the flat tire by screwing the wing bolt back into its hole.

19. Store the jack and tools in the tool kit case. Place the tool kit case in the flat tire.

Loose items can fly around the

Loose items can fly around the interior in a crash and could seriously injure the occupants.

Store the wheel, jack, and tools securely before driving.

20. Store the center cap in the trunk.

Make sure it does not get scratched or damaged.

21. Lower the trunk floor, then close the trunk lid.

22. Your vehicle’s original tire has a tire pressure monitoring system sensor. To replace a tire, refer to Changing a Tire with TPMS
