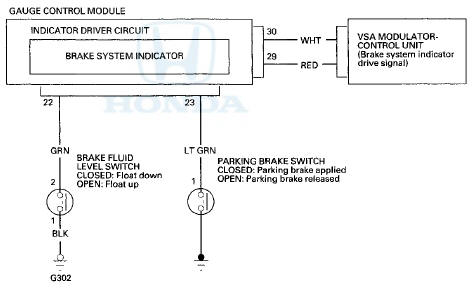

Honda Accord: Brake System Indicator Circuit Diagram
Eighth generation (2008–2012) / Honda Accord MK8 2008-2012 Service Manual / Brakes / Conventional Brake Components / Brake System Indicator Circuit Diagram
Brake System Bleeding
NOTE:
- Do not reuse the drained fluid. Use only new Honda
DOT 3 Brake Fluid from an unopened container. Using
a non-Honda brake fluid can cause corrosion and
shorten the life of the system.
- ...
Parking Brake Switch Test
NOTE: if both the ABS/VSA indicator and the brake
system indicator come on at the same time, check the
VSA system for DTCs first (see page 19-48).
1. Remove the center console (see page 20-158).
...
