Honda Accord: ATF Cooler Hose Replacement - Automatic Transmission - Transaxle - Honda Accord MK8 2008-2012 Service ManualHonda Accord: ATF Cooler Hose Replacement

Exploded View

NOTE: When installing the hose clamps, make sure they do not interfere with


NOTE: When installing the hose clamps, make sure they do not interfere with the surrounding parts.

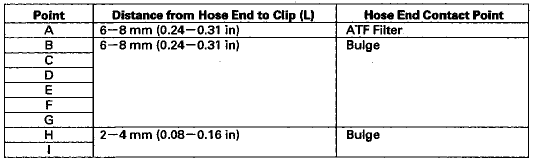

1. Install the ATF cooler hoses over the ATF cooler lines with the clips at appropriate points in reference to the following list. Align the pink paint mark (J) pointing up, and the white paint mark (K) pointing down.

2. Secure the ATF cooler hose with the clamp (M) at the pink paint line (N).


2. Secure the ATF cooler hose with the clamp (M) at the pink paint line (N).

3. Refill the transmission with ATF to the proper level (see page 14-191).

    ATF Cooler Cleaning
    Special Tools Required •ATF Cooler Cleaner GHTTTCF6H -Magnetic Nonbypass Spin-On Filter GTHGNBP2* *: Available through the Honda Tool and Equipment Program 888-424-6857. Before installing an ...

    ATF Filter Replacement
    NOTE: The ATF filter is not a scheduled maintenance item. Replace the filter only if it is leaking, or contaminated, or when the transmission is being overhauled or replaced with a remanufactured u ...
