Honda Accord: Symptom Troubleshooting Index
Power Door Locks/Kef less
1. Check for B-CAN DTCs. If any B-CAN DTCs are Indicated, refer to the B-CAN System Diagnosis Test Mode A (see page 22-134) and resolve them first.
2. If the door lock system and the keyless operation do not work, troubleshoot the door locks first.
NOTE: The system does not function when the ignition switch is ON (II).

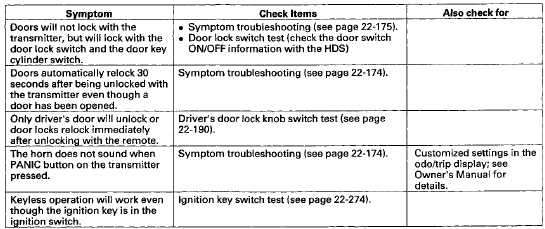

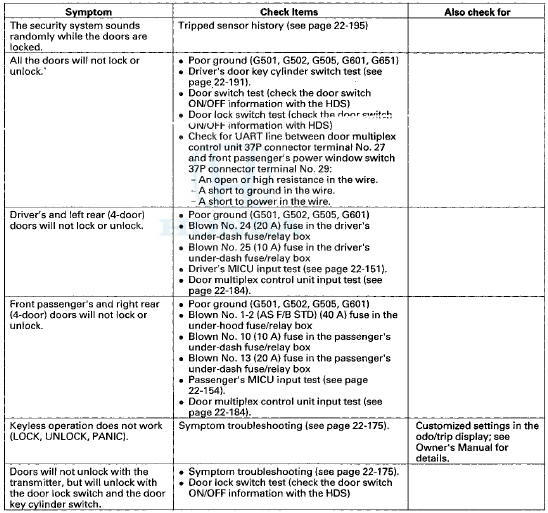

*: If only one door is not working properly, check that door's lock actuator first, then check the other items listed in this table.
*: If only one door is not working properly, check that door's lock actuator first, then check the other items listed in this table.
