Honda Accord: Seat Heater Test - Seat Heaters - Body Electrical - Honda Accord MK8 2008-2012 Service ManualHonda Accord: Seat Heater Test

Driver's Seat

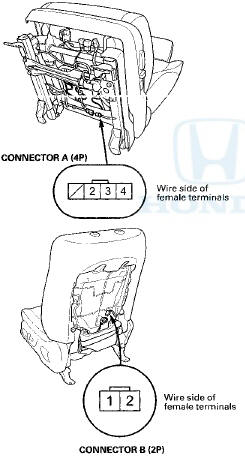

1. Remove the driver's seat (see page 20-194).

2. Remove the seat back panel.

• 4-door (see page 20-221) • 2-door (see page 20-213) 3. Disconnect the connector A (4P) and connector B (2P) from the seat heaters.

4. Check for continuity between seat heater connector B


4. Check for continuity between seat heater connector B (2P) terminals No. 1 and No. 2. There should be continuity.

5. If the continuity is not as specified, replace the seat-back heater.

6. Reconnect seat heater connector B (2P) to the seat-back heater.

7. Check for continuity between seat heater connector A (4P) terminals No. 2 and No. 3, and terminals No. 3 and No. 4 . There should be continuity.

8. If the continuity is not as specified, replace the seat cushion heater.

Front Passenger's Seat

1. Remove the front passenger's seat (see page 20-194).

2. Disconnect the 3P connector (A) from the seat heater.

3. Check for continuity between seat heater 3P


3. Check for continuity between seat heater 3P connector terminals No. 1 and No. 3 and terminals No. 2 and No. 3. There should be continuity.

4. If the continuity is not as specified, replace the seat heater.

    Circuit Diagram
      ...

    Switch Test/Replacement
    1. Remove the center console panel (see page 20-157). 2. Disconnect the 6P (or 7P*) connector from the seat heater switch, then remove the switch. *: Front passenger's seat heater switch 3. ...
