Honda Accord: Multi-View Rear Camera - Driving - Honda Accord 2013-2017 Owner's ManualHonda Accord: Multi-View Rear Camera

About Your Multi-View Rear Camera

About Your Multi-View Rear Camera

The audio/information screen can display your vehicle’s rear view. The display automatically changes to the rear view when the shift lever is moved to (R.

The rear camera view is restricted. You cannot see the corner ends of the bumper or what is underneath the bumper. Its unique lens also makes objects appear closer or farther than they actually are.

Visually confirm that it is safe to drive before backing up. Certain conditions (such as weather, lighting, and high temperatures) may also restrict the rear view. Do not rely on the rearview display which does not give you all information about conditions at the back of your vehicle.

If the camera lens is covered with dirt or moisture, use a soft, moist cloth to keep the lens clean and free of debris.

You can change the Fixed Guideline and Dynamic Guideline settings.

Fixed Guideline

On: Guidelines appear when you shift into (R.
Off: Guidelines do not appear.

Dynamic Guideline

On: Guidelines move according to the steering wheel direction.
Off: Guidelines do not move.

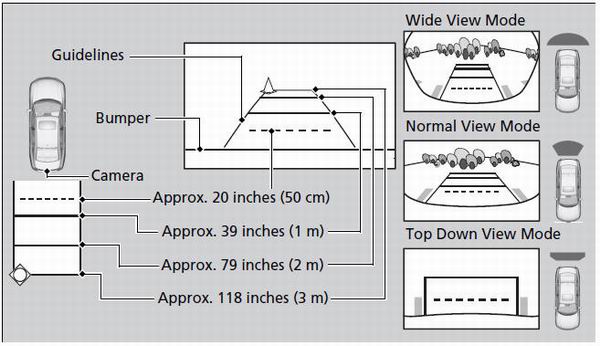

• Multi-View Rear Camera Display Area

You can view three different camera angles on the rearview display. Press the

You can view three different camera angles on the rearview display. Press the selector knob to switch the angle.

If the last used viewing mode is Wide or Normal, the same mode is selected the next time you shift into (R. If Top View was last used, Wide mode is selected.
