If any electrical devices are not working, turn the ignition switch to LOCK and and check to see if any applicable fuse is blown.

• Engine Compartment Fuse Box

Located near the brake fluid reservoir. Push the tabs to open the box.

Fuse locations are shown on the fuse box cover. Locate the fuse in question by the fuse number and box cover number.

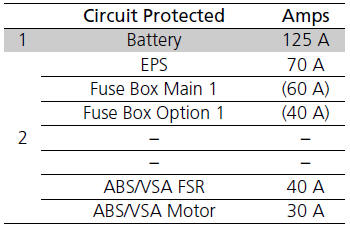

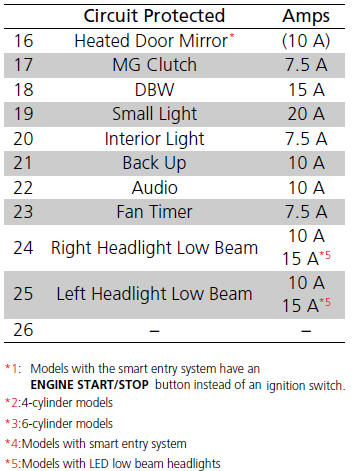

• Circuit protected and fuse rating

• Circuit protected and fuse rating

• Interior Fuse Box

• Interior Fuse Box

Located under the dashboard.

Fuse locations are shown on the label on

Fuse locations are shown on the label on the side panel.

Locate the fuse in question by the fuse number and label number.

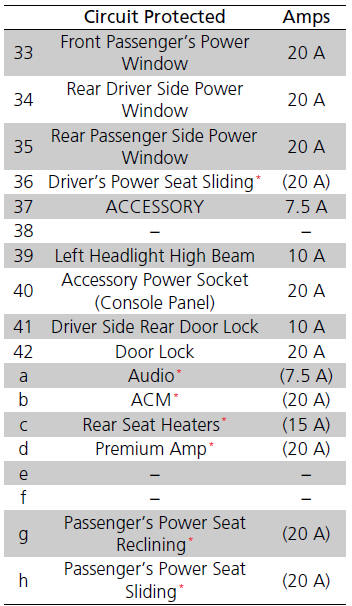

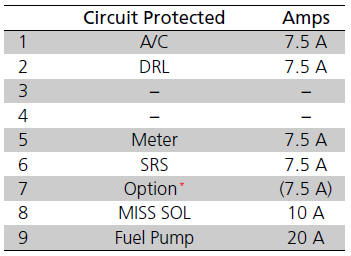

• Circuit protected and fuse rating

Inspecting and Changing Fuses

    Fuses
    ...

    Inspecting and Changing Fuses
    1. Turn the ignition switch to LOCK . Turn headlights and all accessories off. 2. Remove the fuse box cover. 3. Check the large fuse in the engine compartment.  - If the fuse is blow ...
