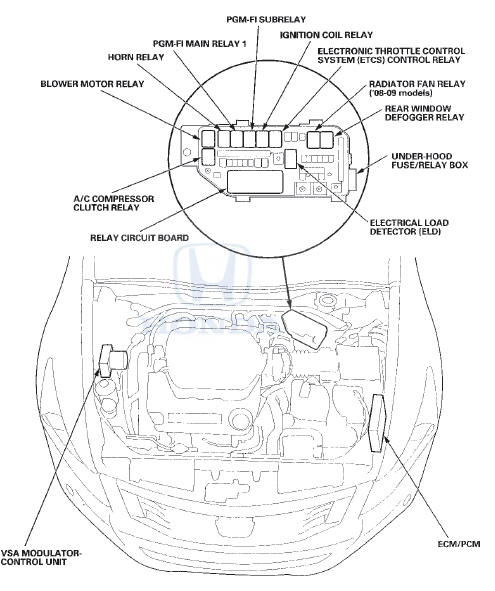

Honda Accord: Engine Compartment
Eighth generation (2008–2012) / Honda Accord MK8 2008-2012 Service Manual / Body Electrical / Relay and Control Unit Locations / Engine Compartment
