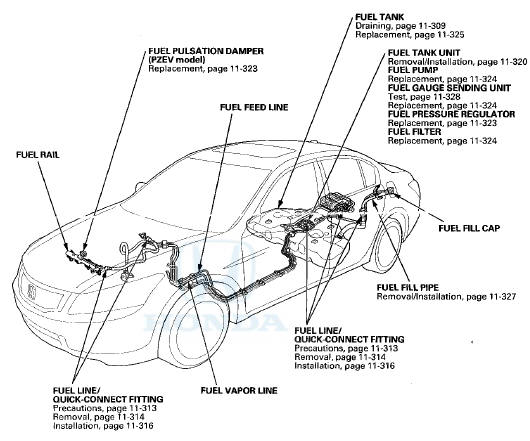

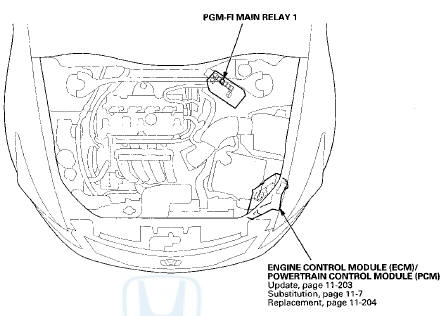

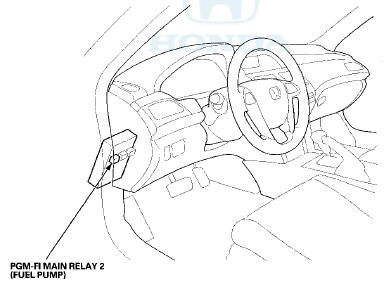

Fuel Supply System

...

DTC Troubleshooting

DTC P0461: Fuel Level Sensor (Fuel Gauge Sending Unit) Circuit Range/Performance Problem NOTE: - Before you troubleshoot record all freeze data and any on-board snapshot, and review the general ...

See also:

Mode Control Motor Test
NOTE: Before testing the motor, check for HVAC DTCs (see page 21-101). 1. Disconnect the 7P connector from the mode control motor. Incorrectly applying power and ground to the mode control mo ...

Idler Gear Shaft Removal and Installation
1. Remove the snap ring (A), the cotter retainer (B), and the 17 mm cotters (C). Do not distort the snap ring. 2. Remove the idler gear shaft/idler gear assembly (D) from the transmission housing ...

Tripped Sensor History
The security s y s t em stores information o n t h e last tripped sensor if t h e security s y s t em has been actuated. The information can be retrieved u s i n g t h e HDS. To retrieve t h e ...
