Honda Accord: Motor Replacement - Moonroof - Body - Honda Accord MK8 2008-2012 Service ManualHonda Accord: Motor Replacement

NOTE: Put on gloves to protect your hands.

1. Remove the headliner (see page 20-140).

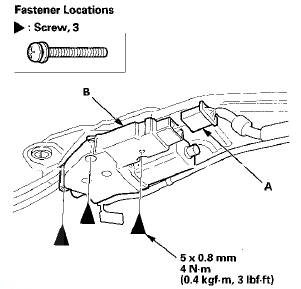

2. Disconnect the connector (A), and remove the screws, then remove the motor (B).

3. Install the motor in the reverse order of removal, and


3. Install the motor in the reverse order of removal, and note these items: - Make sure the motor connector is plugged in properly.

- Reset the moonroof control unit (see page 22-371).

- Check the motor operation.
