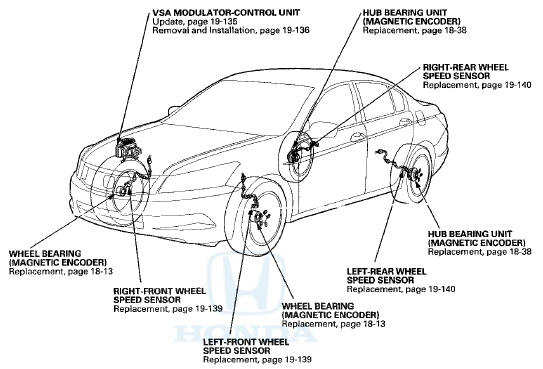

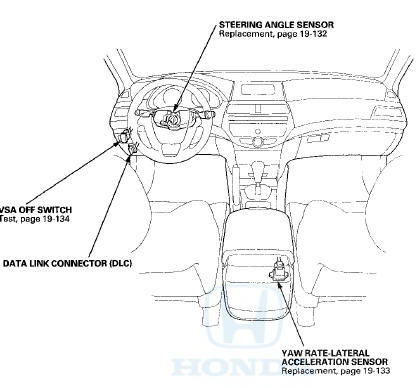

VSA System Components

...

General Troubleshooting Information

Sf stem Indicator This system has four indicators; - ABS indicator (A) - Brake system indicator (B) - VSA indicator (C) - VSA activation indicator (D) When the system is OK, each indicator com ...

See also:

Brake Pedal Position Switch Test
1. Disconnect the 4P connector (A) from the brake pedal position switch (B). 2. Check for continuity between terminals No. 1 and No. 2. • There should be continuity when the brake pedal ...
