Honda Accord: Circuit Diagram - SRS (Supplemental Restraint System) - Restraints - Honda Accord MK8 2008-2012 Service ManualHonda Accord: Circuit Diagram

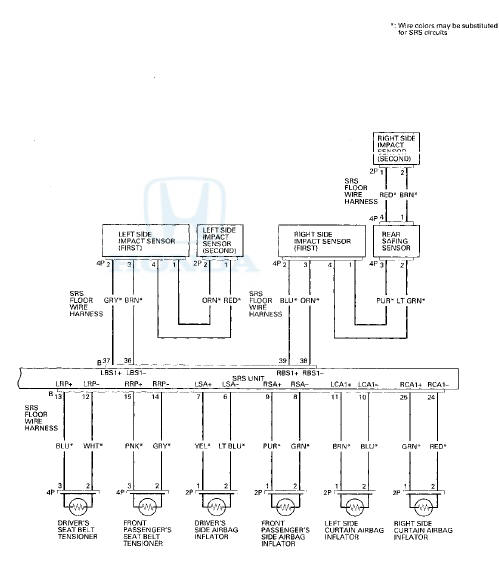

4-Door

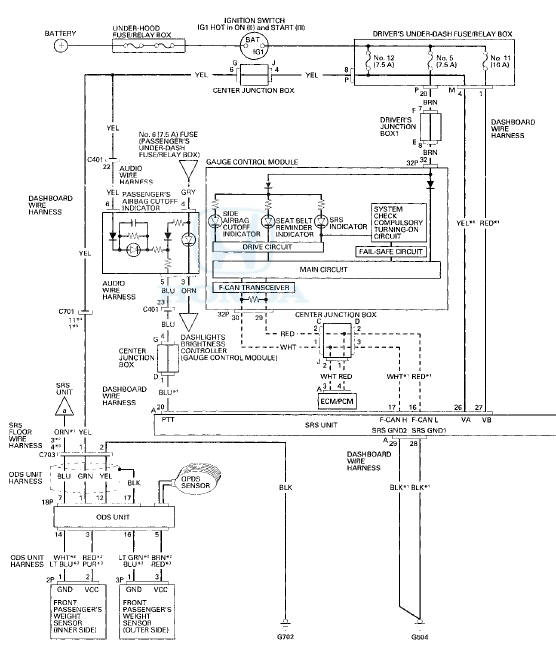

4-Door

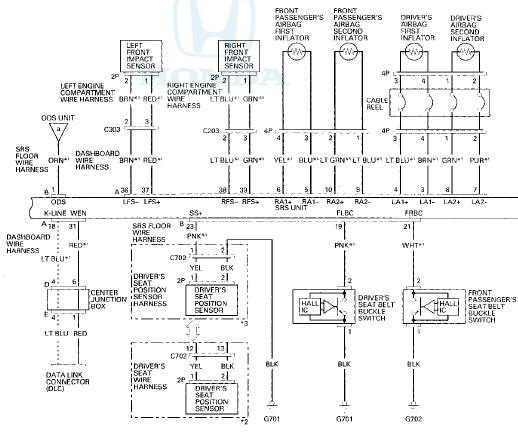

4-Door

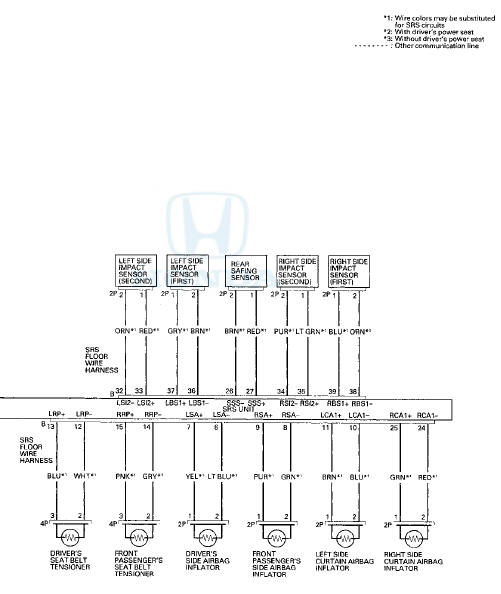

2-Door

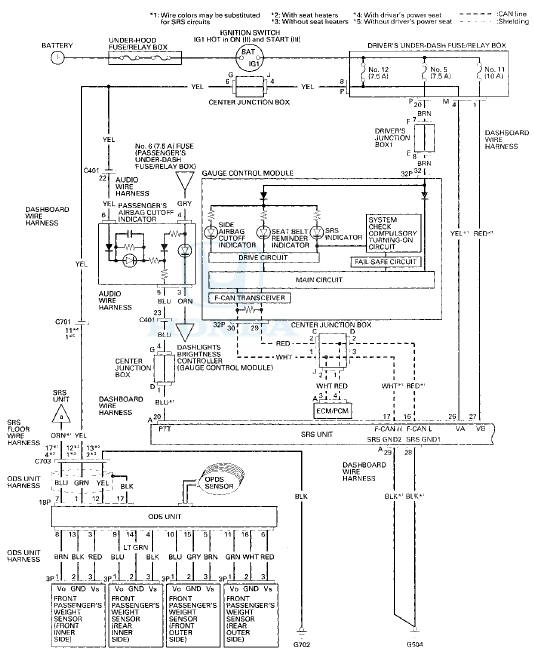

2-Door


2-Door


2-Door

DTC Troubleshooting


    System Description
    SRS Components Airbags The SRS is a safety device which, when used with the seat belt, is designed to help protect the driver and front passenger in a frontal impact exceeding a certain set limit ...

    DTC Troubleshooting
    PTC 11 -1x { " x " can be 0 ,2 thru 3 or A thru F): Open io the Driver's Airbag First Inflator DTC 11-4x ("x" can be 0,2 thru 9 or A thru F): Open in the Driver's Airbag Second ...
