Instrument Panel

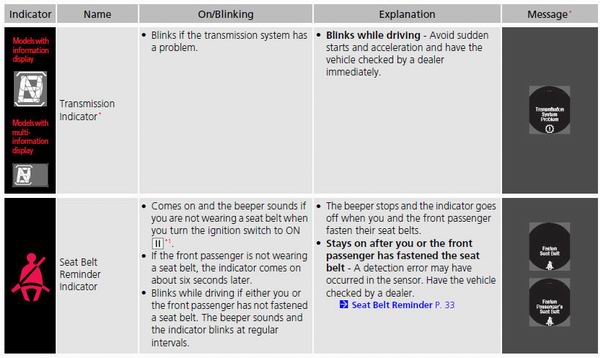

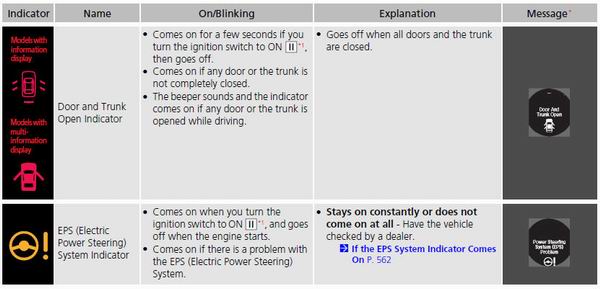

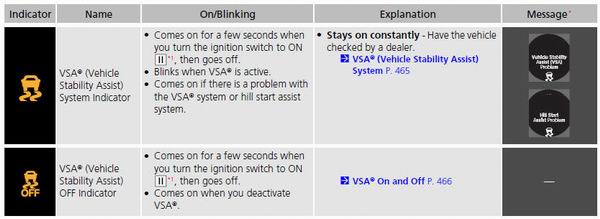

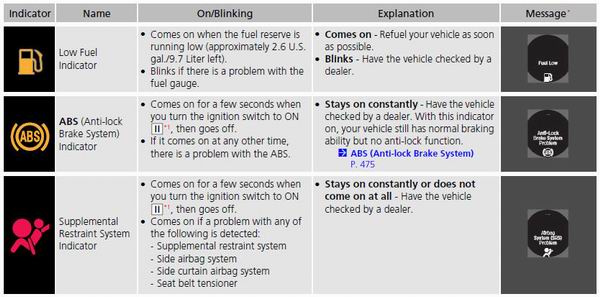

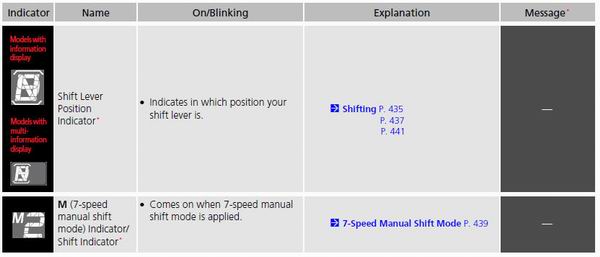

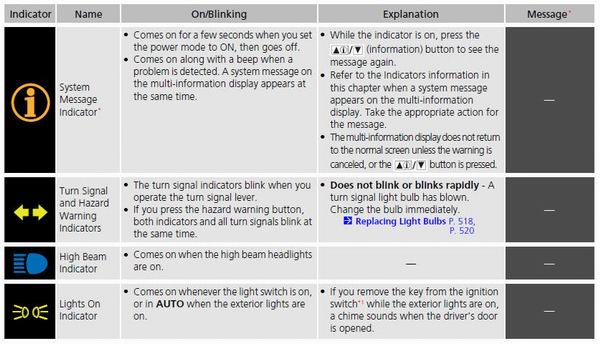

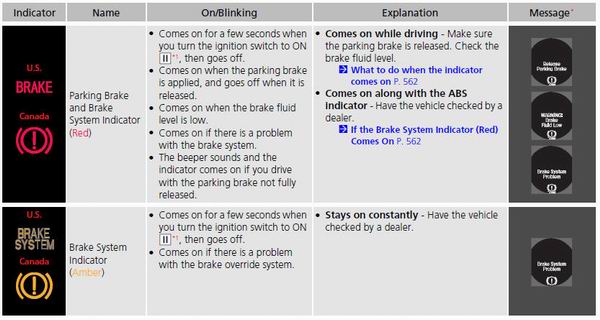

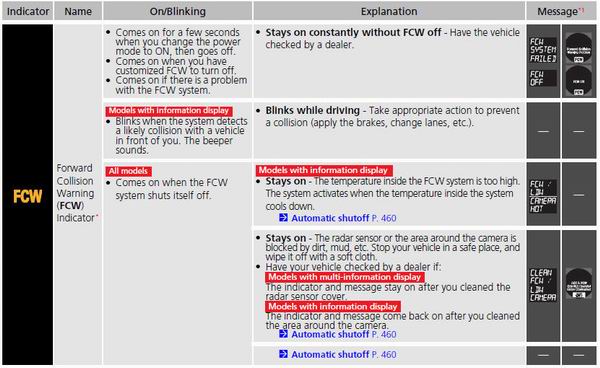

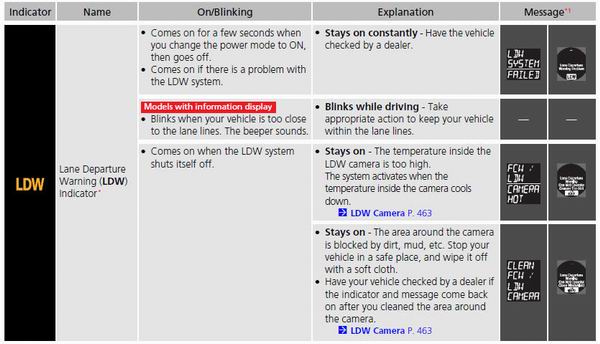

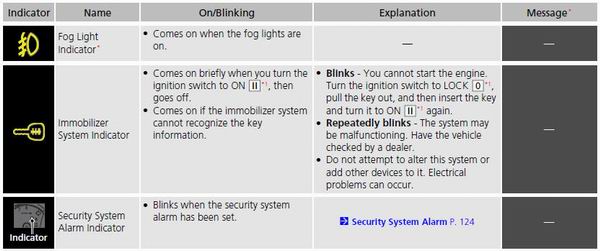

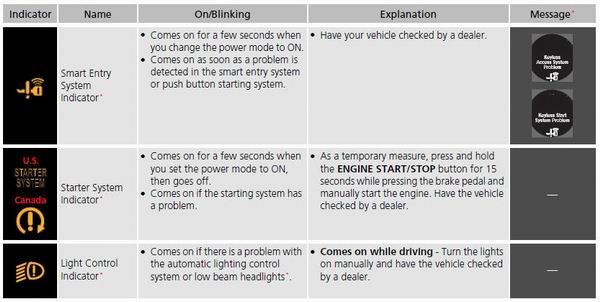

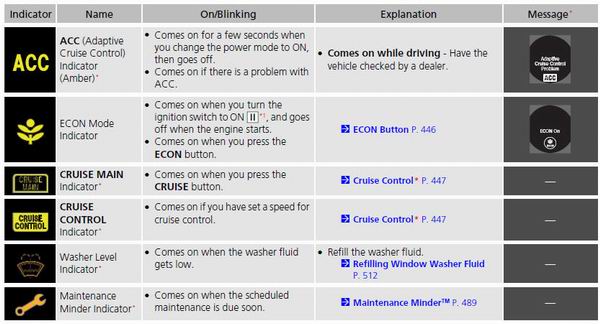

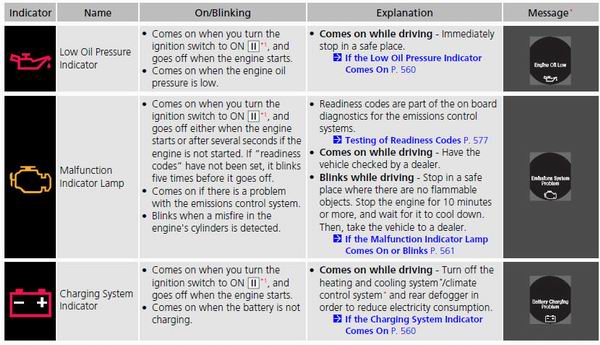

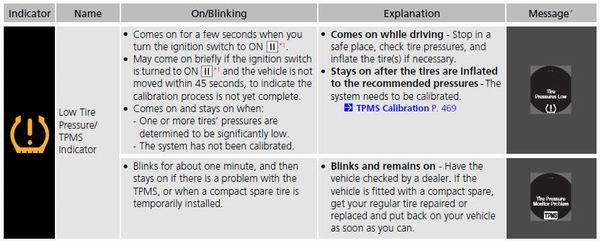

This chapter describes the buttons, indicators, and gauges that are used while driving. ...

Information Display Warning andInformation Messages

The following messages appear only on the information display. ...

See also:

Audio Communication Line Circuit Troubleshooting
1. Turn the ignition switch to LOCK (0). 2. Disconnect climate control unit connector A (28P) and the audio-HVAC subdisplay (with navigation) or audio-HVAC display unit (without navigation) 12P ...

Brake Pedal Position Switch Signal Circuit Troubleshooting
1. Turn the ignition switch to ON (II). 2. Check the BRAKE SWITCH in the DATA LIST with the HDS. Does it indicate OFF? YES-Go to step 3. NO-lnspect the brake pedal position switch (see page ...

Voice Control Switch Test
1. Remove the voice control switch (see page 17-7). 2. Measure the resistance between terminals No. 2 and No. 4 in each switch position according to the table. 3. If the resistance is not as sp ...
