Honda Accord: Glove Box Light Replacement
"08-09 models
1. Remove the glove box stops and damper (see page 20-174).

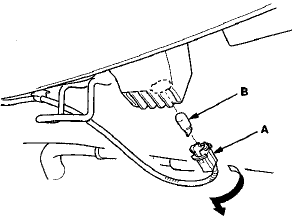

2. Turn the bulb socket (A) 45 В° counterclockwise to remove it.
Glove Box Light: 2 CP
3. Remove the bulb (B) from the socket.
4. Install the light in the reverse order of removal.
Courtesy Light Replacement
1 Carefully pry off the lens (A) with a small screwdriver.
Courtesy Light: 2 CP
2. Remove the bulb (B) from the socket.
3. Install the light in the reverse order of removal. ...
Vanity Mirror Light Test/Replacement
1 . Remove the sunvisor (see page 20-135).
2. Disconnect the 2P connector (A) from the sunvisor (B).
Vanity Mirror Light: 1.1 W x 2
3. Check for continuity between terminals No. 1 and No.
2. ...
