Honda Accord: Dual Temperature Control

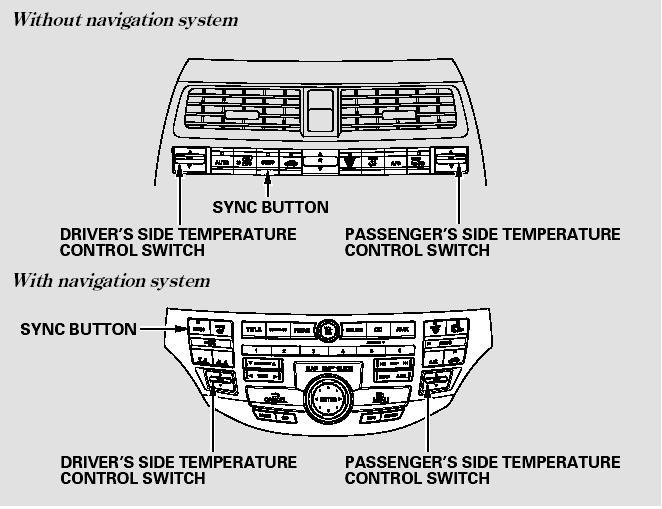

Your vehicle has two temperature control switches, one for the driver, and one for the front passenger.
The temperatures of the driver’s side and the front passenger’s side are controlled independently.
Dual Temperature Control
Synchronized Control
The selected temperatures appear in the display (in the center display on models with navigation system).
When the indicator in the SYNC button is on, you can adjust both sides to the same temperature by pushing the driver’s side temperature control switch up or down.
When you set the temperature to its
upper or lower limit, it is displayed as
or
.
Synchronized Control
Semi-automatic Operation
You can manually select various
functions of the climate control
system when it is in fully automatic
mode. All other features remain
automatically controlled. Making any
manual selection ca ...
Sunlight Sensor/Temperature Sensor
The climate control systemhas two
sensors: a sunlight sensor on top of
the dashboard, and a temperature
sensor next to the steering column.
Do not cover the sensors or spill any
liquid on t ...
