Honda Accord: AM/FM Antenna Amplifier
Replacement - Audio System - Audio, Navigation, and Telematics - Honda Accord MK8 2008-2012 Service ManualHonda Accord: AM/FM Antenna Amplifier Replacement

1. Remove the C-pillar trim.

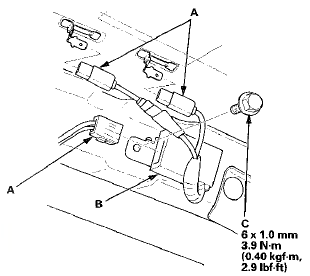

• 4-door (see page 20-110) • 2-door (see page 20-110) 2. Disconnect the connectors (A) from the AM/FM antenna amplifier (B).

4-Door

2-Door


2-Door

3. Remove the bolt (C) and the AM/FM antenna


3. Remove the bolt (C) and the AM/FM antenna amplifier.

4. Install the AM/FM antenna amplifier in the reverse order of removal.
