The tires that came on your vehicle have a

The tires that came on your vehicle have a number of markings. Those you should be aware of are described below.

• Tire Sizes

Whenever tires are replaced, they should be replaced with tires of the same size.

Following is an example of tire size with an explanation of what each component means.

215/55R17 94V

215: Tire width in millimeters.

55: Aspect ratio (the tire’s section height as a percentage of its width).

R: Tire construction code 17: Rim diameter in inches. indicates radial).

17: Rim diameter in inches.

94: Load index (a numerical code associated with the maximum load the tire can carry).

V: Speed symbol (an alphabetical code indicating the maximum speed rating).

• Tire Identification Number (TIN)

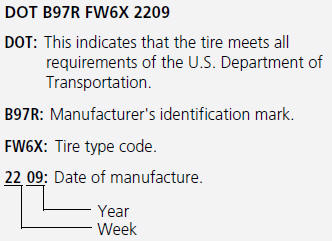

The tire identification number (TIN) is a group of numbers and letters that look like the example in the side column. TIN is located on the sidewall of the tire.

• Glossary of Tire Terminology

• Glossary of Tire Terminology

Cold Tire Pressure – The tire air pressure when the vehicle has been parked for at least three hours or driven less than 1 mile (1.6 km).

Load Rating – Means the maximum load that a tire is rated to carry for a given inflation pressure.

Maximum Inflation Pressure – The maximum tire air pressure that the tire can hold.

Maximum Load Rating – Means the load rating for a tire at the maximum permissible inflation pressure for that tire.

Recommended Inflation Pressure – The cold tire inflation pressure recommended by the manufacturer.

Treadwear Indicators (TWI) – Means the projections within the principal grooves designed to give a visual indication of the degrees of wear of the tread.

    Tire and Loading Information Label
    The label attached to the driver’s doorjamb provides necessary tire and loading information. The tire and loading information label attached to the driver’s doorjamb contains: 1 The numb ...

    DOT Tire Quality Grading (U.S. Vehicles)
    The tires on your vehicle meet all U.S. Federal Safety Requirements. All tires are also graded for treadwear, traction, and temperature performance according to Department of Transportation (DOT ...
