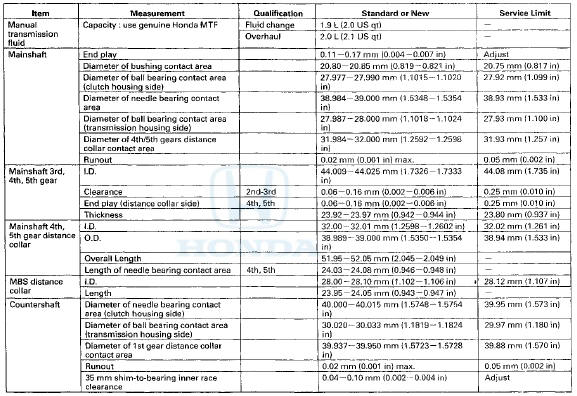

Honda Accord: Manual Transmission and M/T Differential - Standards and Service Limits - Specifications - Honda Accord MK8 2008-2012 Service ManualHonda Accord: Manual Transmission and M/T Differential

Manual Transmission and M/T Differential (cont'd)


    Clutch (cont'd)
    ...

    Manual Transmission and M/T Differential (cont'd)
    ...
