Honda Accord: CKP Pulse Plate Replacement - Engine Block - Engine Mechanical - Honda Accord MK8 2008-2012 Service ManualHonda Accord: CKP Pulse Plate Replacement

1. Remove the crankshaft from the engine block (see page 7-14).

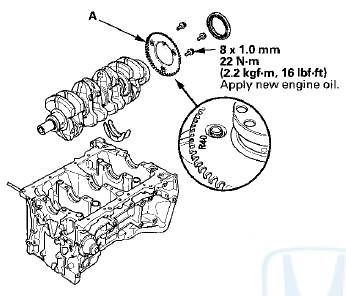

2. Remove the CKP pulse plate (A) from the crankshaft.

3. Install the CKP pulse plate in the reverse order of


3. Install the CKP pulse plate in the reverse order of removal.
