Honda Accord: Fuses - Taking Care of the Unexpected - Honda Accord 2008-2012 Owner's ManualHonda Accord: Fuses

The vehicle’s fuses are contained in

The vehicle’s fuses are contained in three fuse boxes.

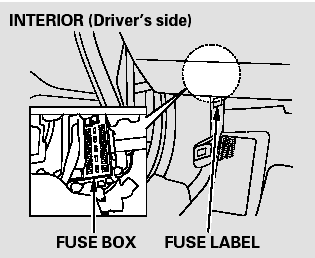

The driver’s side interior fuse box is under the dashboard on the driver’s side. The fuse label is attached to the side panel.

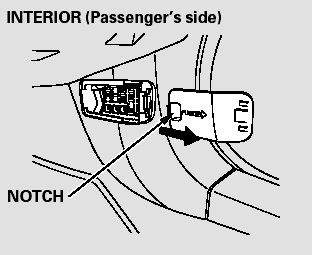

The passenger’s side interior fuse

The passenger’s side interior fuse box is on the lower passenger’s side panel. To remove the fuse box lid, put your finger in the notch on the lid, and pull it upward slightly, then pull it toward you and take it out of its hinges.

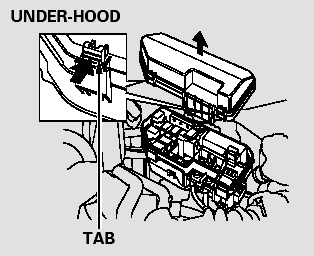

The under-hood fuse box is on the

The under-hood fuse box is on the driver’s side. To open it, push the tabs as shown.

Checking and Replacing Fuses

If something electrical in your vehicle stops working, the first thing you should check for is a blown fuse.

Determine from the chart on pages , and , or the diagram on the fuse box lid or the fuse label, which fuse or fuses control that component. Check those fuses first, but check all the fuses before deciding that a blown fuse is not the cause. Replace any blown fuses and check if the device works.

412 413 414

1. Turn the ignition switch to the LOCK (0) position. Make sure the headlights and all other accessories are off.

2. On the under-hood and passenger’s side interior fuse boxes, remove the cover from each fuse box.

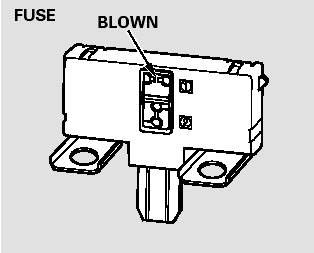

3.  Check each of the large fuses in

3.  Check each of the large fuses in the under-hood fuse box by looking at the wire inside.

Removing these fuses requires a Phillips-head screwdriver.

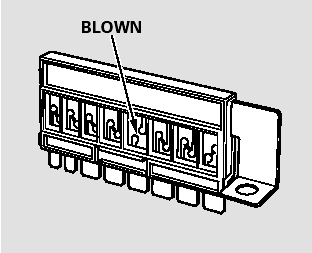

Also check the combined fuse box in

Also check the combined fuse box in the under-hood fuse box.

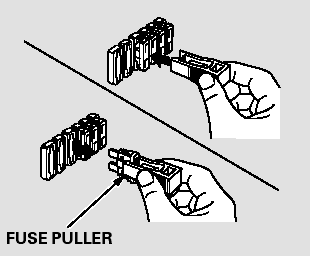

4. Check the smaller fuses in the

4. Check the smaller fuses in the under-hood fuse box and all the fuses in the interior fuse boxes by pulling out each one with the fuse puller provided on the back of the under-hood fuse box cover.

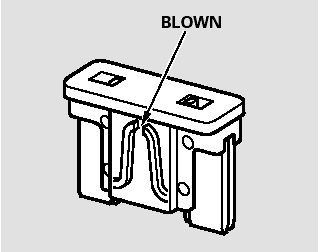

5. Look for a blown wire inside the

5. Look for a blown wire inside the fuse. If it is blown, replace it with one of the spare fuses of the same rating or lower.

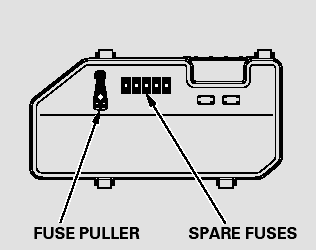

Your vehicle has spare fuses on the

Your vehicle has spare fuses on the back of the under-hood fuse box cover.

If you cannot drive the vehicle without fixing the problem, and you do not have a spare fuse, take a fuse of the same rating or a lower rating from one of the other circuits. Make sure you can dowithout that circuit temporarily (such as the accessory power socket).

If you replace the blown fuse with a spare fuse that has a lower rating, it might blow out again. This does not indicate that anything is wrong.

Replace the fuse with one of the correct rating as soon as you can.

Replacing a f use with one that has a

Replacing a f use with one that has a higher rating greatly increases the chances of damaging the electrical system. If you do not have a replacement f use with the proper rating f or the circuit, install one with a lower rating.

6. If the replacement fuse of the same rating blows in a short time, there is probably a serious electrical problem with your vehicle. Leave the blown fuse in that circuit, and have your vehicle checked by a qualified technician.
