Honda Accord: Washer Tube Replacemen
1. Remove the right front inner fender (see page 20-290).

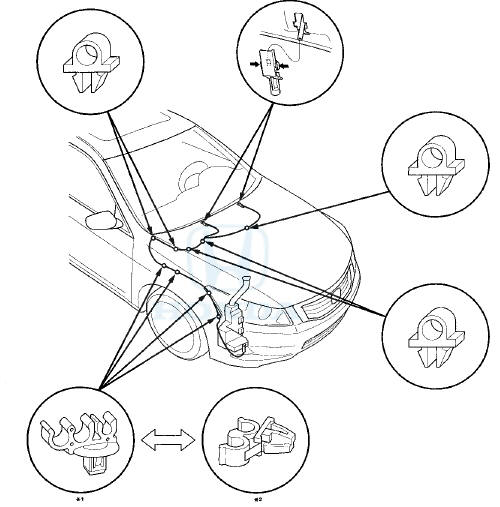

2. Remove the windshield washer nozzles and clips, then remove the tubes.
*1:USA models
*2: Canada models
3. Install in the reverse order of removal. Take care not to pinch the washer tubes. Check the washer operation.
