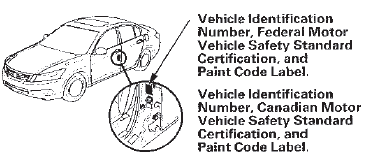

Honda Accord: Vehicle Identification Number
Manufacturer, Make, and Type of Vehicle
1HG: Honda of America Mfg., inc.
Honda passenger vehicle .
JHM: Honda Motor Co., Ltd.
Honda passenger vehicle
Line, Body, and Engine Type
CP2: Accord/K24Z2, K24Z3
Body Type and Transmission Type
5:4-door Sedan/5-speed Manual
6:4-door Sedan/5-speed Automatic
Vehicle Grade (Series)
USA models
3: LX, LX PZEV
4: LX-P, LX-P PZEV
7: EX, EX PZEV
8: EX-L, EX-L PZEV
Canada models
3: LX
4: LX-P
7: EX
8: EX-L
Check Digit
Model Year
9: '09
Factory Code
A:Marysville, Ohio Factory in U.S.A.
C:Saitama Factory in Japan
h. Serial Number
0 0 0 0 0 1 U S A models
800001 - : Canada models
Engine Number
Engine Type K24Z2: 2.4 L DOHC i-VTEC Sequential Multiport Fuel-injected, 177HP engine K24Z3: 2.4 L DOHC i-VTEC Sequential Multiport Fuel-injected, 190HP engine Serial Number 2000001 - K24Z2 prod ...See also:
