Honda Accord: Under-floorTWC Removal/Installation - Catalytic Converter System - Fuel and Emissions - Honda Accord MK8 2008-2012 Service ManualHonda Accord: Under-floorTWC Removal/Installation

1. Raise the vehicle on a lift.

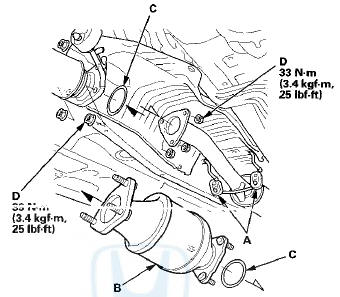

2. Remove the exhaust pipe hangers (A).

3. Remove the under-floor TWC (B).


3. Remove the under-floor TWC (B).

4. Install the parts in the reverse order of removal with new gaskets (C) and new self-locking nuts (D).
