Honda Accord: Trunk Lid Cushion Replacement - Trunk Lid - Body - Honda Accord MK8 2008-2012 Service ManualHonda Accord: Trunk Lid Cushion Replacement

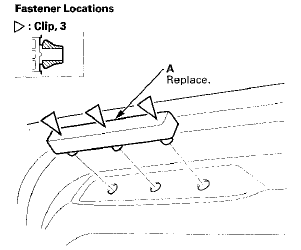

1. Remove the trunk lid cushion (A) by pulling it out to detach the clips.

2. Replace the trunk lid cushion with a new one.


2. Replace the trunk lid cushion with a new one.

3. Install the trunk lid cushion by pushing on the clip areas until the clips snap into place.
