Honda Accord: Trim Removal/Installation - Trunk
Lid - Interior Trim - Body - Honda Accord MK8 2008-2012 Service ManualHonda Accord: Trim Removal/Installation - Trunk Lid

Special Tools Required

KTC Trim Tool Set SOJATP2014*

*Available through the Honda Tool and Equipment Program; call 888-424-6857

NOTE: - Put on gloves to protect your hands. .

- Take care not to bend or scratch the panel.

- Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.

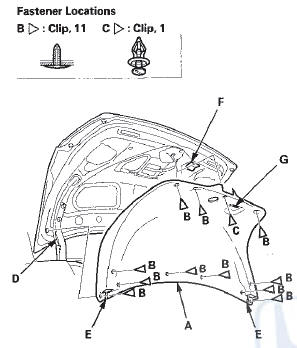

1. Remove the trunk lid trim panel (A).

-1. Remove the clips (B,C).

-2. Pass the trunk lid hinges (D) through the slits (E) on both sides.

-3. Pass the trunk lid handle IF! through the hole (G).

2-door

4-door


4-door

2. Pivot the trunk lid handle (A) down on the forward


2. Pivot the trunk lid handle (A) down on the forward hooks (B) while prying the rear hook (C), then remove the handle.

3. Install the panel in the reverse order of removal, and


3. Install the panel in the reverse order of removal, and note these items: - If the clips are damaged or stress-whitened, replace them with new ones.

- Push the clips and the hooks into place securely
