Honda Accord: Synchronized Mode
You can set the temperature synchronously for the driver side and the passenger side in synchronized mode.

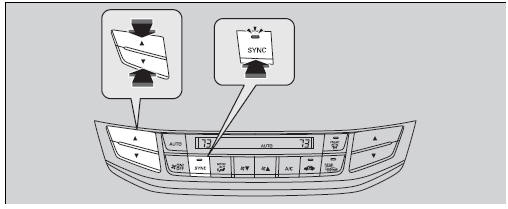

1. Press the SYNC button.
- The system will switch to the synchronized mode.
2. Adjust the temperature using driver’s side temperature control buttons.
Press the SYNC button to return to dual mode.
When you press the
button,
the system changes
to synchronized mode.
When the system is in dual mode, the driver side temperature and the passenger side temperature can be set separately.
The system adjusts each temperature based on the information of the sunlight sensor and the sun position updated by the navigation system’s GPS.
Using Automatic Climate Control
The automatic climate control system maintains the interior temperature you
select.
The system also selects the proper mix of heated or cooled air that will as
quickly as
possible, raise or l ...
Automatic Climate Control Sensors
The automatic climate control system is
equipped with a sunlight sensor and an
interior temperature sensor. Do not cover or
spill any liquid on them.
...
