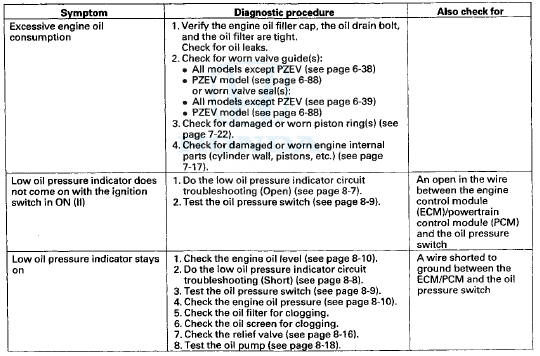

Honda Accord: Symptom Troubleshooting Index - Engine Lubrication - Engine Mechanical - Honda Accord MK8 2008-2012 Service ManualHonda Accord: Symptom Troubleshooting Index

Low Oil Pressure Indicator Circuit Diagram


    Component Location Index
    ...

    Low Oil Pressure Indicator Circuit Diagram
    ...
