General Troubleshooting Information

Lever-Locked Connector Disconnecting To disconnect the connector, pull the lever (A) while pushing the lock tab (B) down, then pull the connector (C). Connecting To connect the connector, push ...

System Description

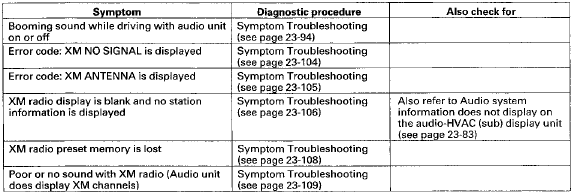

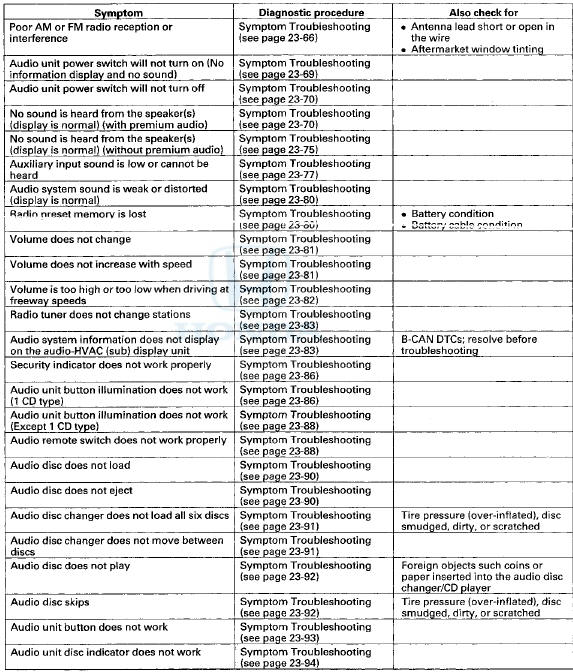

Overview The audio unit acts as the processor for all audio functions. You can select the audio functions from the front panel, the audio remote (on the steering wheel), or by using the navigation ...

See also:

Vanity Mirror Light Test/Replacement
1 . Remove the sunvisor (see page 20-135). 2. Disconnect the 2P connector (A) from the sunvisor (B). Vanity Mirror Light: 1.1 W x 2 3. Check for continuity between terminals No. 1 and No. 2. ...

Front HFL-ANC Microphone Removal/Installation
NOTE: • Put on gloves to protect your hands. • Take care not to scratch the dashboard and related parts. • Lay a workshop towel under the parts when working on them to protect ...

Charging System Indicator Circuit Troubleshooting
troubleshooting the charging system indicator. 1. Turn the ignition switch to ON (II). Does the charging system indicator come on? YES-Go to step 2. NO-Go to step 14. 2. Start the engine. ...
