Component Location Index

...

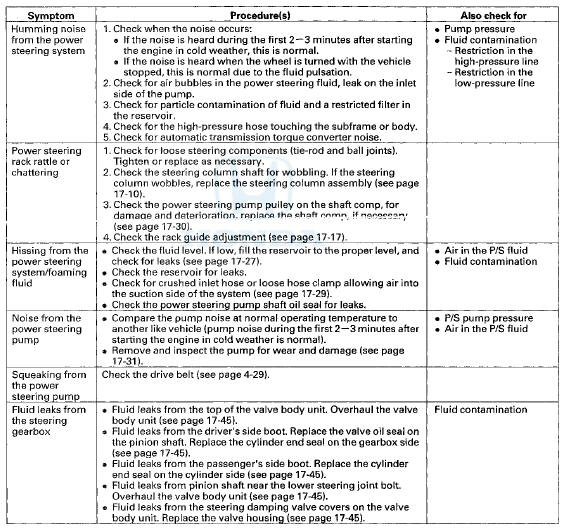

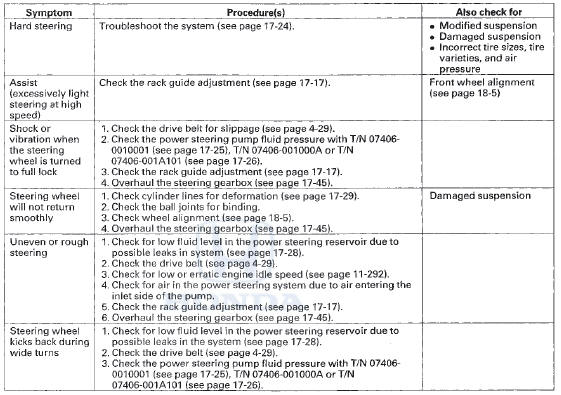

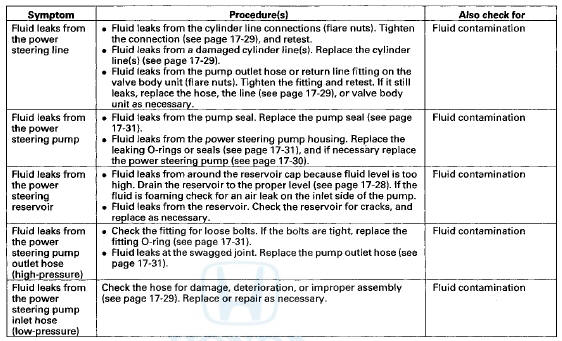

Symptom Troubleshooting

Hard Steering NOTE: -Compare to a known-good vehicle that is the same trim level. -Check for suspension damage. m Check the steering alignment. -Check the tire condition and pressure. 1 ...

See also:

Circuit Diagram
DRIVER'S UNDER-DASH FUSE/RELAY BOX CONNECTOR N (16P) Wire side of female terminals DRIVER'S UNDER-DASH FUSE/RELAY BOX CONNECTOR P (20P) Wire side of female terminals GAUGE CONTROL MODULE 3 ...

Airbag and Tensioner Disposal
Special Tools Required Deployment Tool 07HAZ-SG00500 Before scrapping any airbags, side airbags, side curtain airbags, seat belt tensioners, (including those in a whole vehicle to be scrapped), th ...

Front Passenger's Airbag Replacement
NOTE: If r e p l a c i n g t h e f r o n t passenger's airbag after d e p l o y m e n t , refer t o Component Replacement/ Inspection A f t e r Deployment (see page 24-208) f o r a c o m p l e t e ...
