Honda Accord: Specifications (4-cylinder models) - Technical Information - Honda Accord 2008-2012 Owner's ManualHonda Accord: Specifications (4-cylinder models)

Dimensions

Dimensions
Dimensions

Weights

Weights
Weights

Air Conditioning

Air Conditioning
Air Conditioning

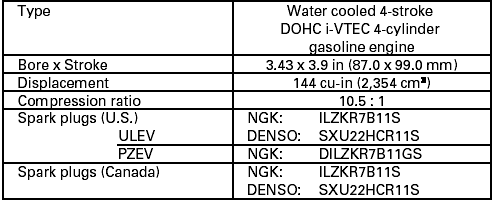

Engine

Engine
Engine

Seating Capacities

Seating Capacities
Seating Capacities

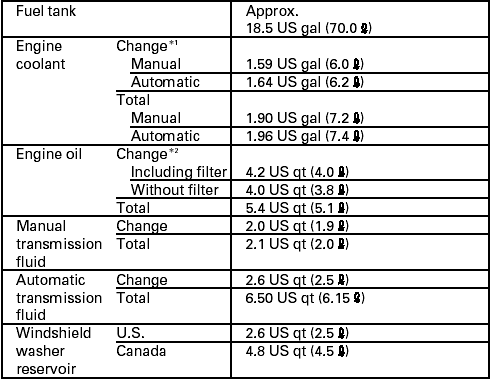

Capacities

Capacities
Capacities

* 1: Including the coolant in the reserve tank and that remaining in the engine

Reserve tank capacity: 0.180 US gal (0.68 l)

* 2: Excluding the oil remaining in the engine

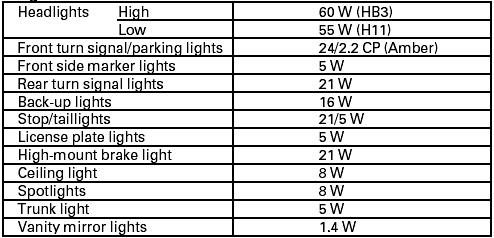

Lights

Lights
Lights

Battery

Battery
Battery

*: PZEV engine model, and Canadian models

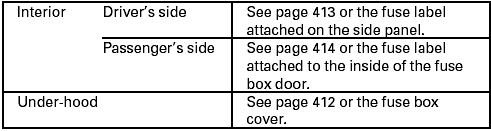

Fuses

Fuses
Fuses

Tires

Tires
Tires

Alignment

Alignment
Alignment

    Identification Numbers
    Your vehicle has several identifying numbers in various places. The vehicle identification number (VIN) is the 17-digit number your dealer uses to register your vehicle for warranty purpose ...

    Specifications (V6 models)
    Dimensions Dimensions Weights Weights Air Conditioning Air Conditioning Engine Engine *: Manual transmission Seating Capacities Seating Capacities Capacities Capacities *1 : ...
