A/F Sensor Replacement

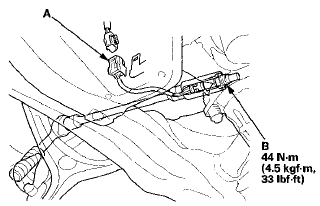

Special Tools Required 02 Sensor Wrench Snap-on S6176 or equivalent, commercially available 1. Disconnect the A/F sensor 4P connector (A), then remove the A/F sensor (B). 2. Install the parts i ...

CMP Sensor B Replacement

1. Disconnect the connector (A) and hoses (B) from the EVAP canister purge valve (C), then remove the EVAP canister purge valve assembly. 2. Disconnect the CMP sensor B connector (A). 3. Remov ...

See also:

Mainshaft Thrust Clearance Adjustment
Special Tools Required - Mainshaft Holder 07GAJ-PG20110 - Mainshaft Base 07GAJ-PG20130 1. Remove the 72 mm shim (A) and oil guide plate M from the transmission housing (B). 2. Thoroughly clea ...

Gauge Control Module Replacement
NOTE: Before replacing the gauge control module, rewriting the ODO data and transferring the maintenance minder data to a new gauge control module (see page 22-350). 1. Remove the instrument vis ...

Sunlight Sensor/Temperature Sensor
The climate control systemhas two sensors: a sunlight sensor on top of the dashboard, and a temperature sensor next to the steering column. Do not cover the sensors or spill any liquid on t ...
