Honda Accord: Rocker Arm Oil Pressure Switch B
Removal/Installation
PZEV model
1. Remove the rocker arm oil control valve (see page 11-275).
2. Remove rocker arm oil pressure switch B.

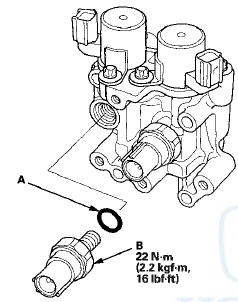

3. Install the parts in the reverse order of removal with a new O-ring (A),
Rocker Arm Oil Pressure Switch A
Removal/Installation
PZEV model
1. Remove the rocker arm oil control valve (see page
11-275).
2. Remove rocker arm oil pressure switch A.
3. Install the parts in the reverse order of removal with a
new O-ring (B) ...
