Honda Accord: Receiver/Dryer Desiccant Replacement - Heating/Air Conditioning - Heating, Ventilation, and Air Conditioning - Honda Accord MK8 2008-2012 Service ManualHonda Accord: Receiver/Dryer Desiccant Replacement

NOTE: Install the receiver/dryer as quickly as possible to prevent the system from absorbing moisture from the air.

1. Remove the A/C condenser (see page 21 -77).

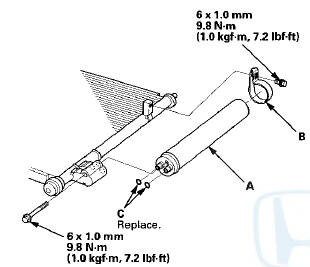

2. Remove the bolts from the A/C condenser, then remove the receiver/dryer (A), the bracket (B), and the O-rings (C).

3. Install the receiver/dryer in the reverse order of


3. Install the receiver/dryer in the reverse order of removal. Replace the O-rings with new ones, and apply a thin coat of refrigerant oil (DENSO ND-OIL 8) before installing them. Be sure to use the correct O-rings for HFC-134a (R-134a) to avoid leakage.
