Honda Accord: Rear Bumper Finisher Cover Replacement - Bumpers - Body - Honda Accord MK8 2008-2012 Service ManualHonda Accord: Rear Bumper Finisher Cover Replacement

2-door

NOTE: - Put on gloves to prevent damage.

- Take care not to scratch the rear bumper or the body.

- When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.

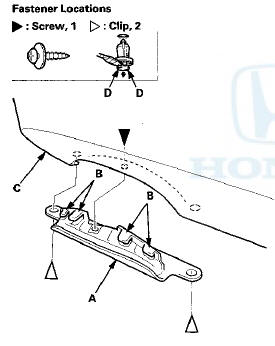

1. Remove the screw and detach the clips. Pull the rear bumper finisher cover (A) forward to release the hooks (B), then remove the cover from the rear bumper (C).

NOTE: To release the clips, pry up on the center pin at the notch <D).

2. Install the cover in the reverse order of removal, and


2. Install the cover in the reverse order of removal, and note these items: - If the clips are damaged or stress-whitened, replace them with new ones.

- Push the clips into place securely.
