Honda Accord: Power Distribution - Body Electrical - Honda Accord MK8 2008-2012 Service ManualHonda Accord: Power Distribution

Fuse to Components Index

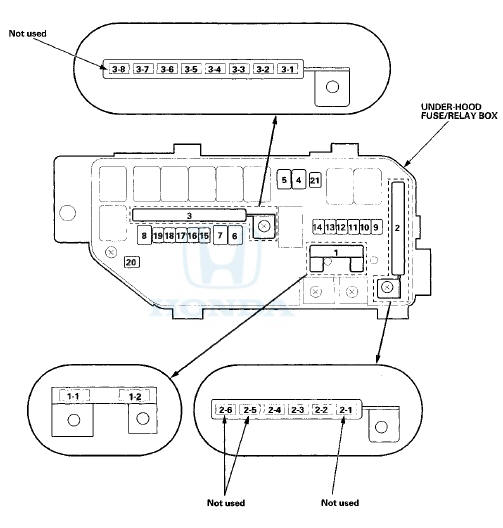

Under-hood Fuse/Relay Box

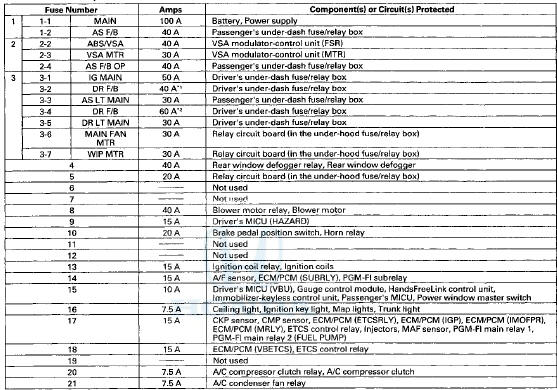

* 1 : LX, LX PZEV, LX-P, LX-P PZEV


* 1 : LX, LX PZEV, LX-P, LX-P PZEV

*2: Except LX, LX PZEV, LX-P, LX-P PZEV

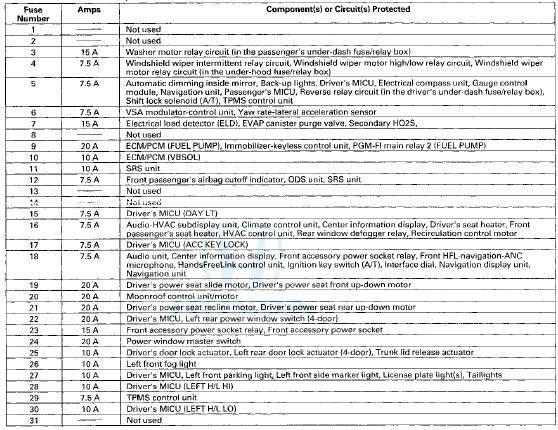

Driver's Under-dash Fuse/Relay Box


Driver's Under-dash Fuse/Relay Box

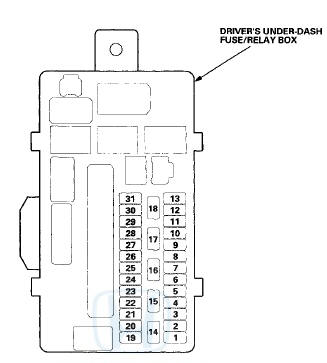

Passenger's Under-dash Fuse/Relay Box


Passenger's Under-dash Fuse/Relay Box

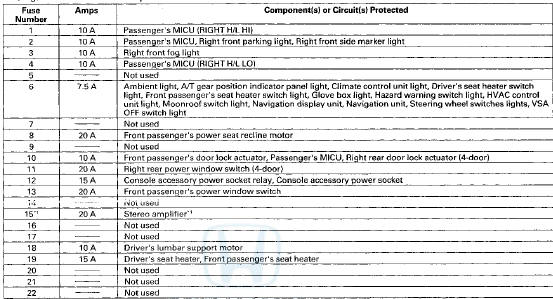

* 1 : With premium audio system


* 1 : With premium audio system

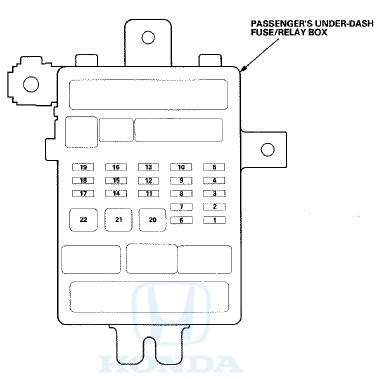

Ground Distribution


    Fuse/Relay Boxes
    Connector to Fuse/Relay Box Index Under-hood Fuse/Relay Box *: '08-09 models Driver's Under-dash Fuse/Relay B O M Passenger's Under-dash Fuse/Relay Box *1: LX, LX PZEV, LX-P, LX-P PZE ...

    Ground Distribution
    Ground to Components Index * 1 : EX-L, EX-L PZEV *2: Except EX-L, EX-L PZEV *3: With premium audio system *4: With navigation system *5: '10 model *6: '08-09 models ...
