Honda Accord: PCV Valve Inspection - PCV System - Fuel and Emissions - Honda Accord MK8 2008-2012 Service ManualHonda Accord: PCV Valve Inspection

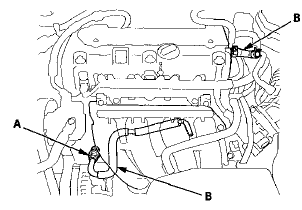

1. Check the PCV valve (A), hoses (B), and connections for leaks or restrictions.

1.PCV valve when the hose between the PCV valve and


1.PCV valve when the hose between the PCV valve and intake manifold is lightly pinched (A) with your fingers or pliers.

If there is no clicking sound, check the PCV valve washer for cracks or damage. If the washer is OK, replace the PCV valve and recheck.

PCV Valve Replacement


    Component Location Index
    ...

    PCV Valve Replacement
    1. Disconnect the PCV hose. 2. Remove the PCV valve (A). 3. Install the parts in the reverse order of removal with a new washer (B). ...
