Transmission Number

Transmission Type 88E5: 5-speed Manual M91 A: 5-speed Automatic B90A: 5-speed Automatic Serial Number 1000001-: M91A, B90A 8000001-: 88E5 ...

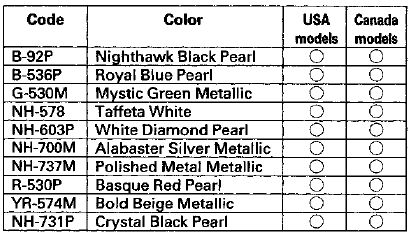

Chassis and Paint Codes - '08 2-door Model

...
