Honda Accord: Oil Filter Base Replacement - Engine Lubrication - Engine Mechanical - Honda Accord MK8 2008-2012 Service ManualHonda Accord: Oil Filter Base Replacement

1. Remove the oil filter (see page 8-12).

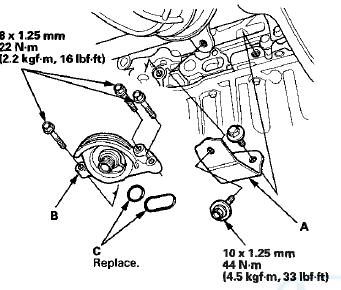

2. Remove the exhaust pipe bracket (A), then remove the oil filter base (B).

3. Clean the O-ring grooves and the mating surface with


3. Clean the O-ring grooves and the mating surface with the oil filter base.

4. Install the oil filter base with new O-rings (C).

5. Install the oil filter (see page 8-12).
