Honda Accord: Oil Check
Wait a few minutes after turning the engine off before you check the oil.

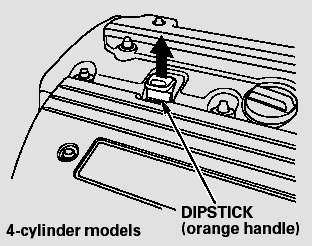

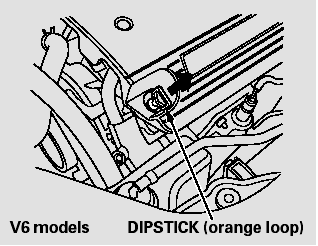

1. Remove the dipstick (orange handle/loop).
2. Wipe off the dipstick with a clean cloth or paper towel.
3. Insert the dipstick all the way back into its hole.

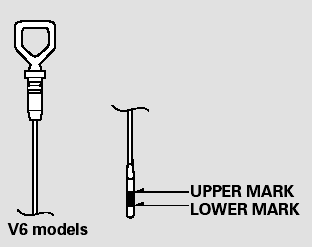

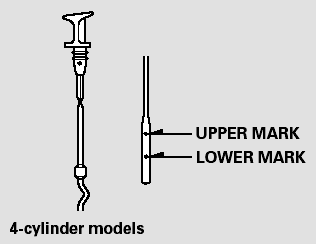

4. Remove the dipstick again, and check the level. It should be between the upper and lower marks.
If it is near or below the lower mark, Adding Engine Oil
Opening and Closing the Hood
1. Park the vehicle, and set the
parking brake. Pull the hood
release handle located under the
lower left corner of the dashboard.
The hood will pop up slightly.
2. Reach in between the ho ...
Engine Coolant Check
Look at the coolant level in the
radiator reserve tank. Make sure it is
between the MAX and MIN lines. If
it is below the MIN line, see Adding
Engine Coolant for information on adding ...
