Honda Accord: Lubricants a n d Fluids

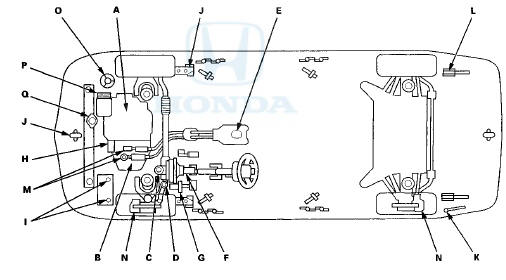

For the details of the lubrication points and the type of lubricants to be applied, refer to the illustrated index and the various work procedures (such as Assembly/Reassembly, Replacement Overhaul, Installation, etc.) contained in each section.

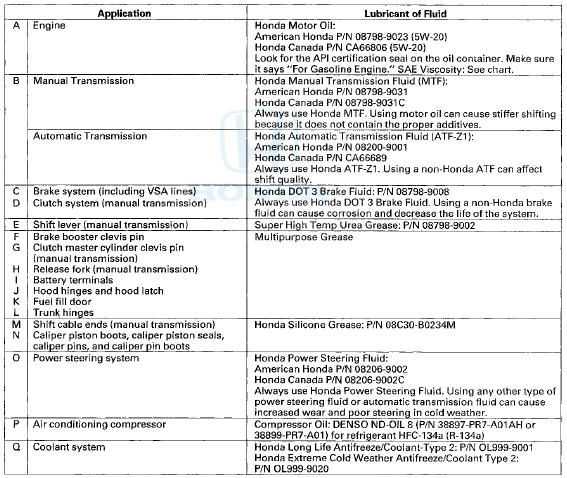

NOTE: * Lubricate the following areas using the recommended lubricants and fluids.
- In corrosive areas, more frequent lubrication is necessary.
O A J E
