Honda Accord: License Plate Light Replacement - Exterior Lights - Body Electrical - Honda Accord MK8 2008-2012 Service ManualHonda Accord: License Plate Light Replacement

4-door

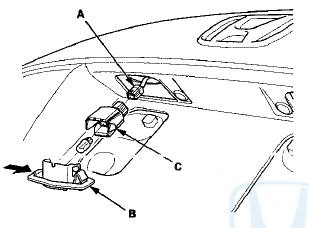

1. Poll the license plate light assembly out, and disconnect the 2P connector (A) from the license plate light.

License Plate Light: 5W

2. Separate the lens (B) and housing (C), then remove


2. Separate the lens (B) and housing (C), then remove the bulb.

3. Install the light in the reverse order of removal

2-door

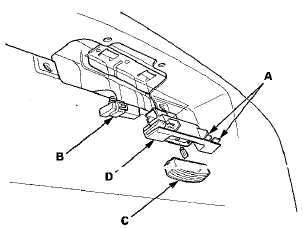

1. Remove the license plate light (A), and disconnect the 2P connector (B) from the license plate light.

License Plate Light: 5 W

2. Separate the lens (C) and housing (D), then remove


2. Separate the lens (C) and housing (D), then remove the bulb.

3. Install the light in the reverse order of removal.
