Honda Accord: Ignition Switch


WARNING
Removing the key from the ignition switch while driving locks the steering. This can cause you to lose control of the vehicle.
Remove the key from the ignition switch only when parked.

You cannot take the key out unless the shift lever is in (P).

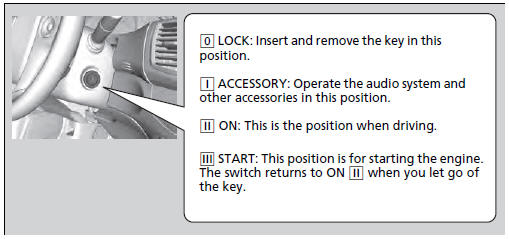

If you open the driver's door when the key is in LOCK
or ACCESSORY
, a warning buzzer will sound
to remind you to take the key out.
If the key won't turn from LOCK
to
ACCESSORY
, turn the key while moving the
steering wheel left
and right. The steering wheel will unlock, allowing
the key to turn.
ENGINE START/STOP Button
• Changing the Power Mode
ENGINE START/STOP Button Operating Range
You can start the engine when the smart entry
remote is inside the vehicle.
The engine may also run if the smart entry r ...
