Honda Accord: Ignition Key Light Test - Entry Lights Control System - Body Electrical - Honda Accord MK8 2008-2012 Service ManualHonda Accord: Ignition Key Light Test

1. Remove the steering column upper and lower covers (see page 20-181).

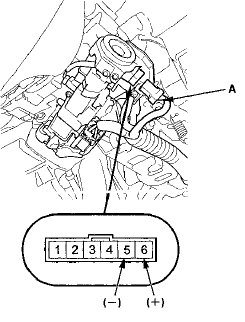

2. Disconnect the 6P connector (A).

3. The LED should come on when power is connected to


3. The LED should come on when power is connected to terminal No. 6 and ground is connected to terminal No. 5.

4. If the LED does not come on, the ignition key switch is faulty; replace the steering lock assembly (see page 17-16).
